VantaFold Carbon Fibre Electric Wheelchair
Premium carbon-fibre mobility, made lighter
The Newbi Move VantaFold Carbon is a premium folding electric wheelchair designed for lighter transport, longer days out and confident everyday mobility. Its carbon-fibre frame weighs just 13.6kg excluding the batteries, while two removable 24V 7.8Ah lithium batteries provide a maximum combined range of up to 13.75 miles in suitable conditions. Dual 200W brushless motors, a generously sized seat, responsive joystick control and an attendant remote combine portability with practical support for both independent and assisted use.
VantaFold Carbon at a glance
Who is the VantaFold Carbon best suited for?
The VantaFold Carbon is a strong choice for anyone wanting a genuinely lightweight folding electric wheelchair with extended twin-battery range and the flexibility of independent or attendant-assisted control.
- Car journeys and frequent transport
- Shopping trips and everyday appointments
- Holidays, cruises and longer days out
- Users who may sometimes need attendant assistance
- Indoor use and well-maintained paved outdoor surfaces
- People wanting premium portability without sacrificing useful range
Before ordering: the 13.6kg figure excludes both 1.36kg batteries. The published frame and battery weights total approximately 16.32kg with both batteries fitted. Please check that the lifting weight and folded dimensions are manageable for the person and vehicle involved.
Product details
Open each section below for full information.
Key features
- Lightweight carbon-fibre frame: weighs 13.6kg excluding the two batteries for more manageable lifting, transport and storage.
- Twin-battery range: two removable 24V 7.8Ah lithium batteries provide a maximum combined range of up to 13.75 miles in suitable conditions.

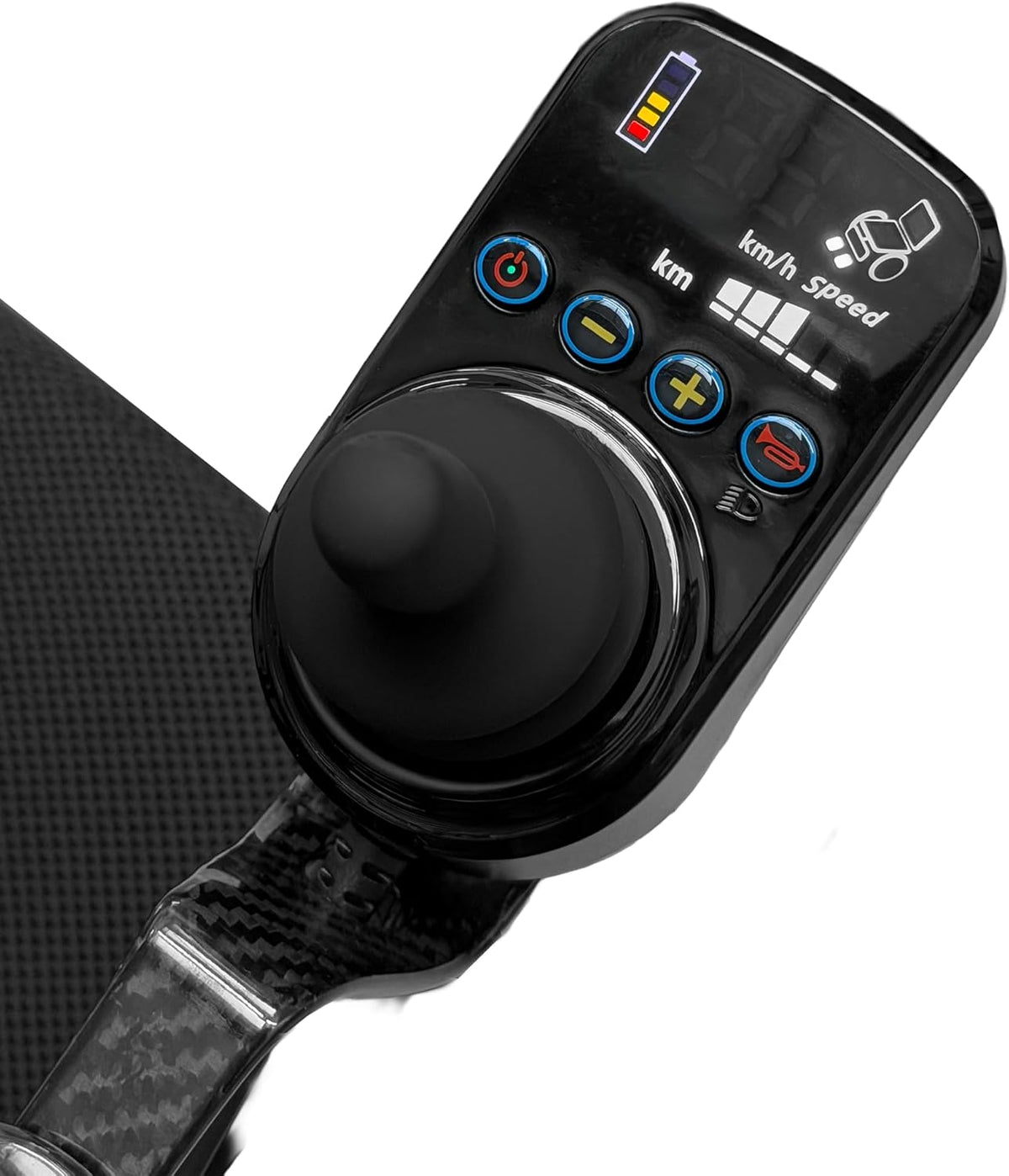

- Independent and assisted control: responsive joystick operation is complemented by an attendant remote control.
- Dual brushless motors: twin 24V 200W motors provide balanced power and straightforward everyday handling.
- Generously sized seating: the published 50 × 50cm seat and 47cm backrest provide supportive everyday comfort.
- Automatic braking: the electromagnetic brake engages when the joystick is released.
- Practical safety features: adjustable anti-tip wheels, seat belt, front light, horn and manual freewheel mode support confident daily use.
- Compact manoeuvring: a turning radius of no more than 1.2m helps when navigating tighter indoor and outdoor spaces.
Full specifications
| Product type | Carbon-fibre folding electric wheelchair |
|---|---|
| Frame weight | 13.6kg excluding both batteries |
| Battery weight | 2 × 1.36kg |
| Maximum user weight | 120kg |
| Maximum speed | Up to approximately 3.75mph |
| Maximum range | Up to 22km (approximately 13.75 miles)* |
| Batteries | 2 × 24V 7.8Ah removable lithium batteries |
| Motors | 2 × 24V 200W brushless motors |
| Overall dimensions | 96 × 60.5 × 93cm (L × W × H) |
| Folded dimensions | 38.5 × 60.5 × 75.5cm (L × W × H) |
| Seat size | Published as 50 × 50cm |
| Seat depth | 48cm |
| Backrest height | 47cm |
| Armrest height | 25cm |
| Front wheels | 203 × 47mm |
| Rear wheels | 300 × 50mm |
| Turning radius | 1.2m or less |
| Maximum permissible ditch depth | Up to 80mm |
| Maximum safe slope | 9° |
| Obstacle climbing height | Up to 30mm |
| Water resistance | IPX3 |
| Operating temperature | 5°C to 40°C |
| Battery charger | 24V 2A output |
| Minimum braking distance | Up to 1.5m on pavement; up to 3.6m on a 6° slope |
*Range can vary depending on terrain, gradients, user weight, temperature, driving conditions and battery condition. Published dimensions and performance figures are supplied by the manufacturer. IPX3 provides limited protection from light water spray; the wheelchair should not be treated as waterproof or used in heavy rain, deep puddles or standing water.

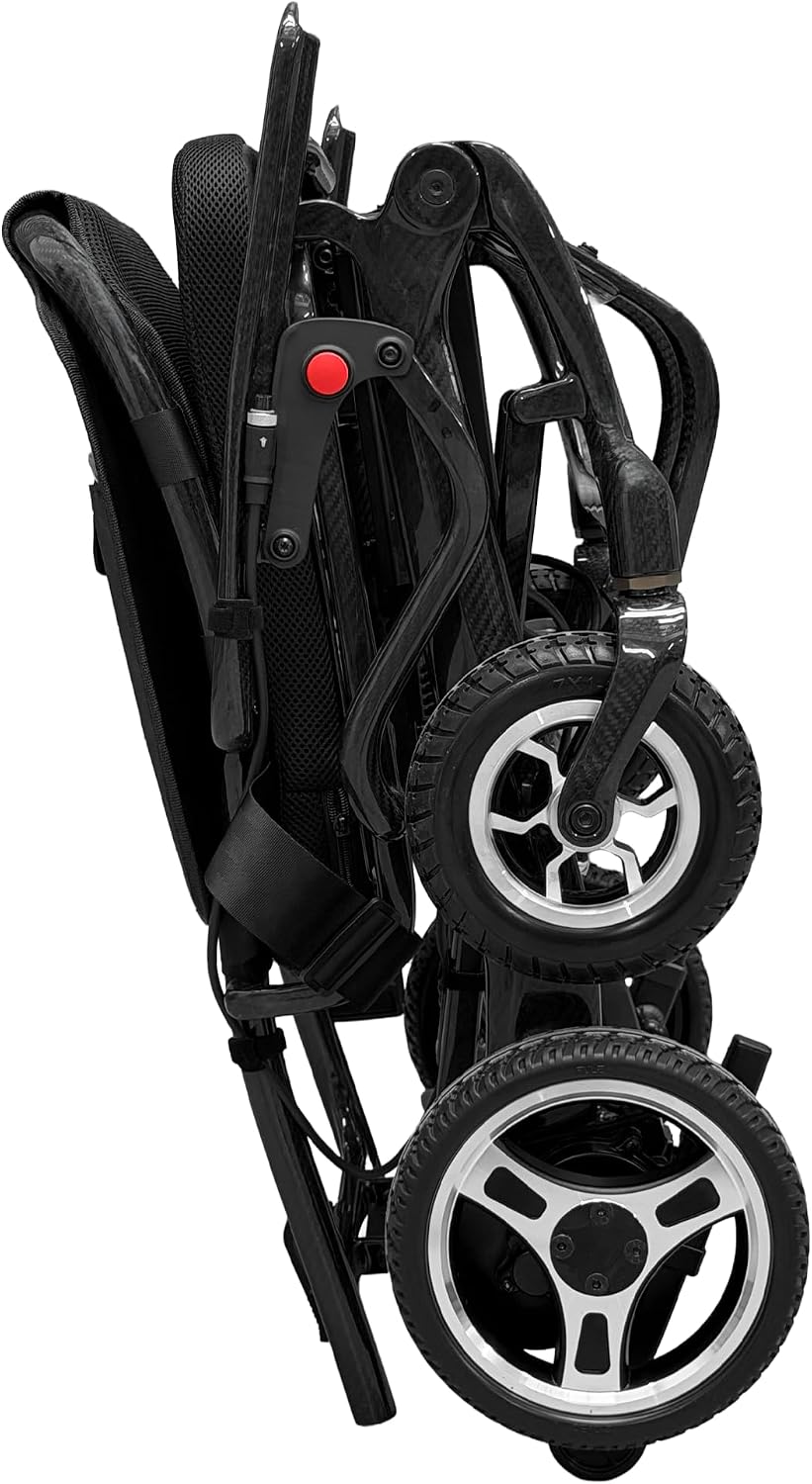

Folding and transport
The VantaFold Carbon folds into a compact shape for car transport, home storage and everyday travel. Removing the two batteries reduces the published lifting weight to 13.6kg.
- Folded dimensions: 38.5 × 60.5 × 75.5cm (L × W × H).
- Frame weight: 13.6kg excluding both batteries.
- Battery weight: 1.36kg each; two batteries are included.
- Simple folding: switch off the wheelchair, release the folding buckle, lower the backrest and fold the footrest as described in the user manual.
- Compact storage: designed for car transport and smaller home storage spaces; always measure the available space before ordering.
Travel note: airline and cruise-line acceptance is always at the operator’s discretion. Confirm the exact specifications printed on the supplied battery labels and obtain approval directly from the relevant travel provider before booking or travelling.
Battery and charging
- Two removable 24V 7.8Ah lithium batteries are included.
- Each battery weighs approximately 1.36kg.
- The two batteries provide a maximum combined range of up to 22km, or approximately 13.75 miles, in suitable conditions.
- A compatible charger with 24V 2A output is included.
- A full charge takes approximately 8–10 hours; never charge for longer than 24 hours.
- If the wheelchair is not being used, charge the batteries at least once each month.
- Always follow the charging, storage and battery-care instructions supplied in the user manual.
Actual range depends on terrain, gradients, user weight, temperature, driving conditions and battery condition. The user manual recommends charging between 10°C and 50°C. Check transport-provider requirements before travelling with either lithium battery.
What’s included
- Newbi Move VantaFold Carbon folding electric wheelchair
- 2 × 24V 7.8Ah removable lithium batteries
- Battery charger
- Joystick controller
- Attendant remote control
- Padded seat cushion
- Adjustable seat belt
- User manual
Colours and the visible carbon-fibre finish may appear slightly different in person because of lighting, screen settings and product photography.
Supplier and fulfilment information
VantaFold Carbon is the Newbi Move retail name for the iCAN Carbon electric wheelchair. iCAN branding and the model reference may appear on the wheelchair, batteries, user manual and/or original outer packaging.
Your purchase is made from Newbi Move. Orders are dispatched directly from the iCAN UK warehouse on our behalf.
For delivery, setup, product questions, warranty or after-sales support, please contact Newbi Move first. We will manage your query and liaise with iCAN where needed.
